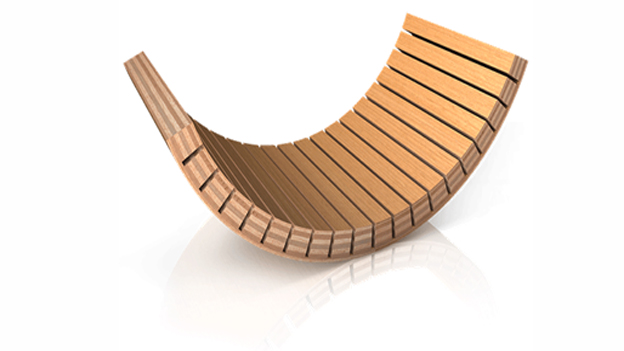

Curved Acoustic Panels
Designers and architects are interested in modern curved ceiling and walls. getting the curve finishes with wooden panels is not easy and hence required best design and technology driven products. Prenpanel limited develop curve panels based on groove/ perforated acoustic panel front. These panels depending on the groove / perforation finishes give acoustic performance at mid frequencies.
Curve shaped not only give diversified 3Dimenions choices to designers but enhance acoustic performance with fluent shapes.
Features
- Modular sizes up to 1220x2440
- Almost limitless range of factory-applied finishes
- Available in perforated.grooved and micro perforations
- Made an advance CNC machines
- Custom sizes, design, and finishes
- Installation kits for ease of installation
- Suspended ceiling tiles for 600mm & 1200 mm and other modules
- Varied sound absorption coefficients upto 0.95 NRC
- Available in standard and FR Grades For Class A core requirements
- Available in No added Formaldehyde-NAF Ecofriendly cores
- Including Acoustic Black Fleece backing
- Continuous perforations mean panels can easily be cut on site
- Ideal for wall and ceiling applications
Used in Malks Auditoriums School Museum alc Curved wo & cellings give luxury look to overal interions
| Type | Curved Wooden Acoustic Panels |
|---|---|
| Structure | Base Material/Finishing/Back Acoustic Fleece |
| Base | Standard/Fire resistant/No added Formaldehyde Eco Friendly |
| Finishes | Mealimine/Laminate/Veneer/Paint |
| Model | C-05/4/4 C-1/4/4_C_2/8/8 C-28/4 C-6/2 C-19/2 |
| Size | 600mm x 1200mm / 1200mm x 1200mm / 1200mm x 2400mm |
| Thickness | 15mm/18mm |
| Acoustic | Upto NRC 0.95 |
| Fire | Class A/Class C as required |
